MELASTA

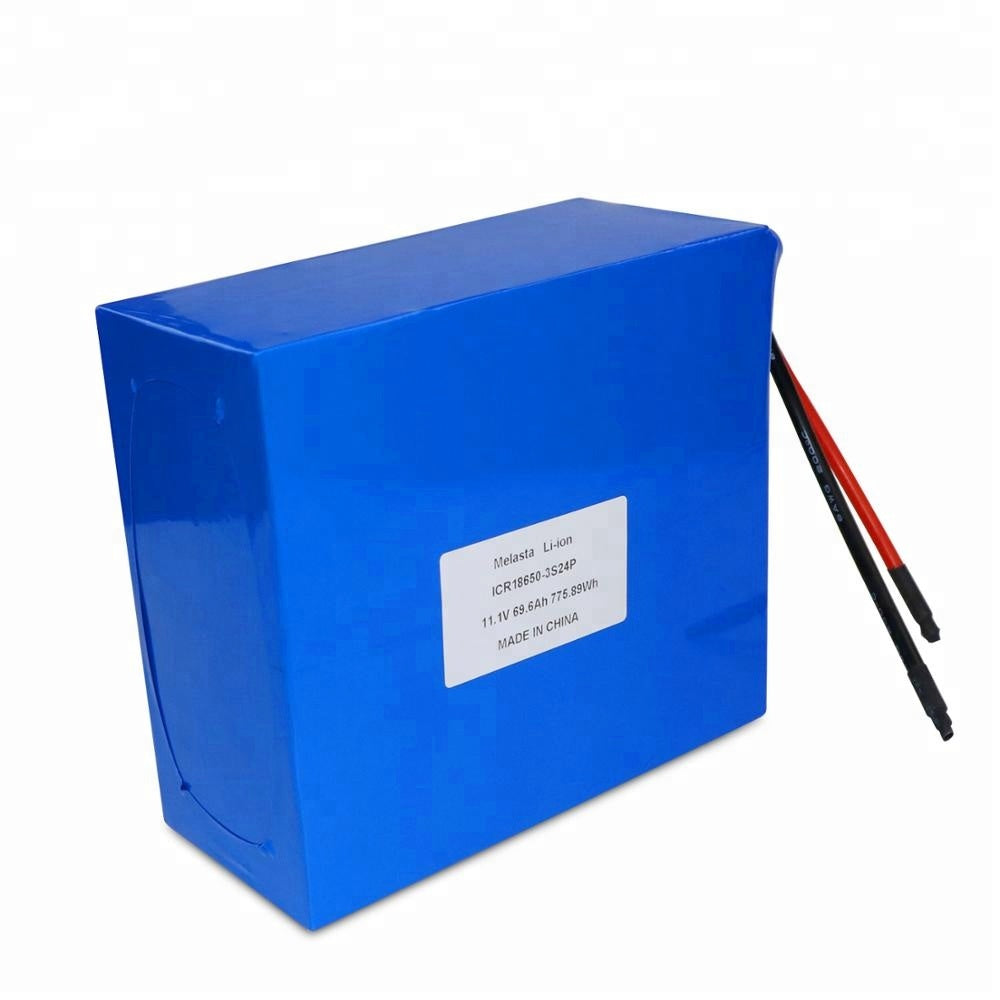

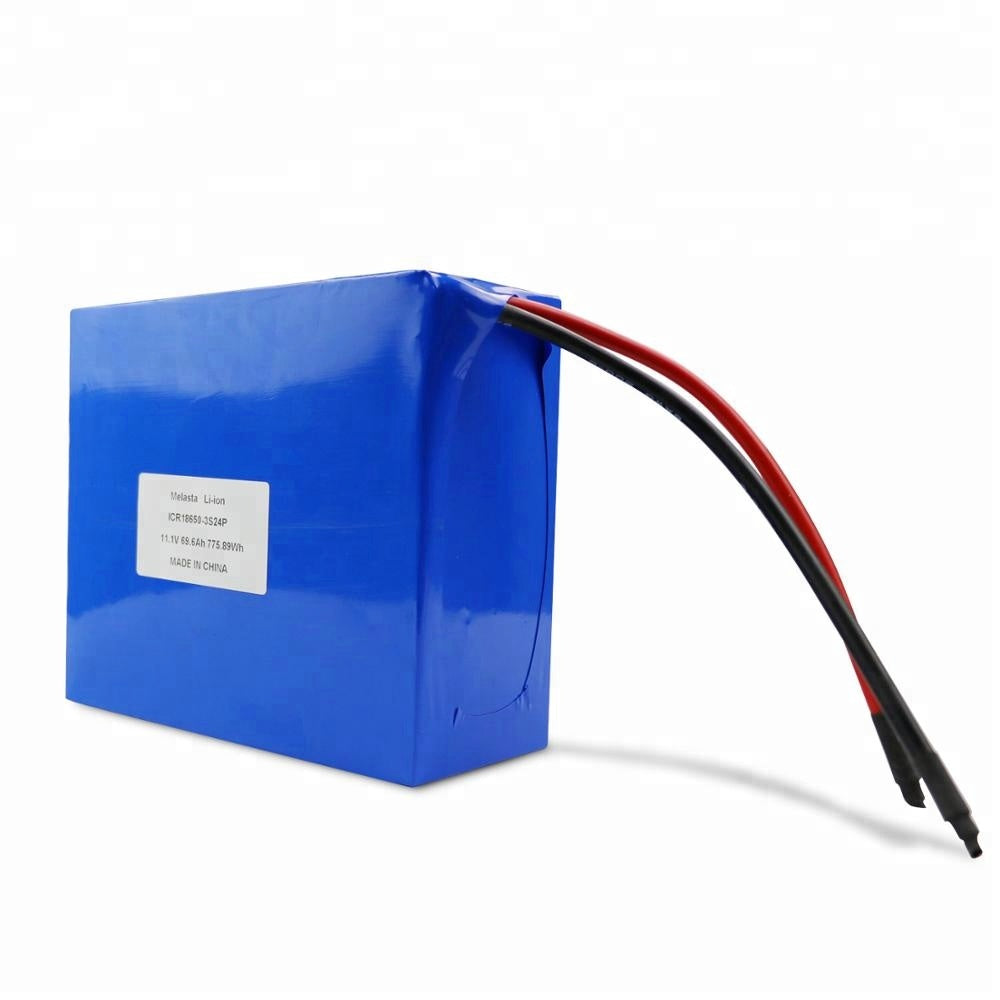

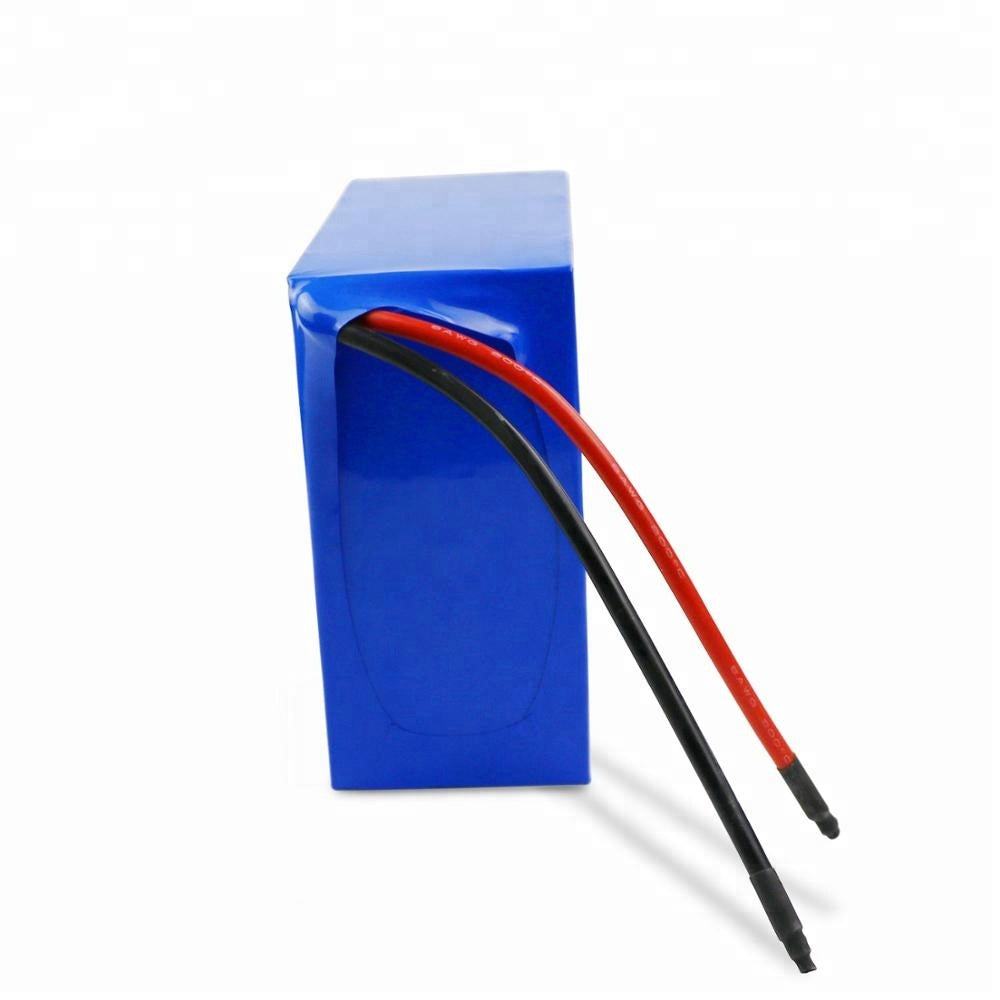

11.1V 69.6Ah Li-ion Electric Motorcycle Battery Pack

  • Sale
  • Regular price $364.71
Shipping calculated at checkout.


Quick Details:
Place of Origin: China
Brand Name: Melasta
Model Number: NCR18650PF-3S24P
Type: Li-Ion
Nominal Voltage: 11.1V, 11.1V
Size: Prismatic
Nominal Capacity: 69.6Ah
Battery type: Lifepo4/lithium Battery
Cycle life: 500 Times
Power: 772.56Wh
Cell: Panasonic Li-ion 18650-2900MAH
Color: blue
Protection: Built-in Smart BMS
Charge Voltage: 12.6V
Max Continuous Discharge Current: 60A
Supply Ability: 500 Pack/Packs per Week
Packaging Details: Standard Package
Port:Shenzhen Port
Lead Time :
Quantity(Packs) 1 - 50 >50
Est. Time(day) 35 To be negotiated
Product Description:
12V 69.6Ah Li-ion Rechargeable 18650 battery pack for portable power bank (NCR18650PF-3S24P 11.1V 69.6Ah 772.56Wh)


Battery Configuration: Panasonic NCR18650PF cells * 72pcs

Normal voltage: 11.1V

Battery Capacity: 69.6Ah (772.56Wh)

Cycle life :> 500 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)

Overcharge Voltage: 12.6V

Over discharge: 9.0V

Prewired Charge & Discharge Wire: UL 3135 AWG#8 (red and black), Length= 200±5mm;

Charging rate Standard charge: 0.2C (14A); charge time: 6h

Fast charge: 0.5C (35A); charge time: 3h

Standard Discharge: 0.2C (14A),

Max Continuous Discharge: 1C (70A)

Peak discharge: 1.2C (80A < 0.1 seconds limited by PCM)

Charging temperature: 0 to 45 degrees Celsius

Discharge temperature: -20 to 70 degrees Celsius

Storage temperature: -20 to 40 degrees Celsius

Max Dimensions (LxWxH): 85mm x 160mm x 180mm

Weight: approx. 3500g
