1
|

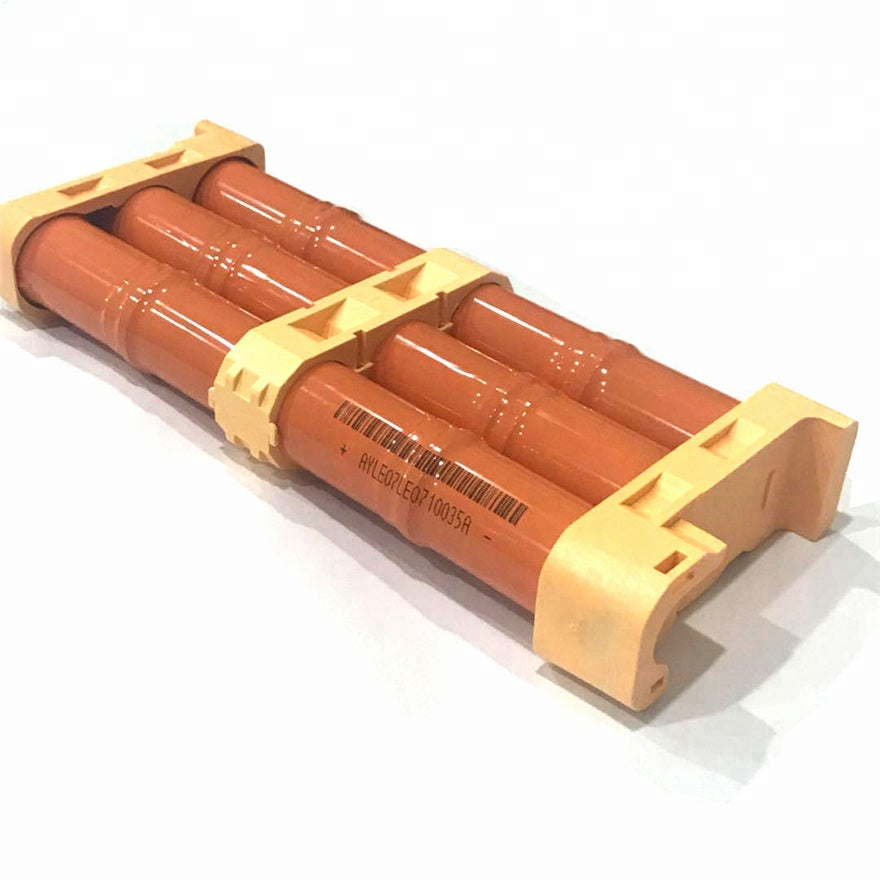

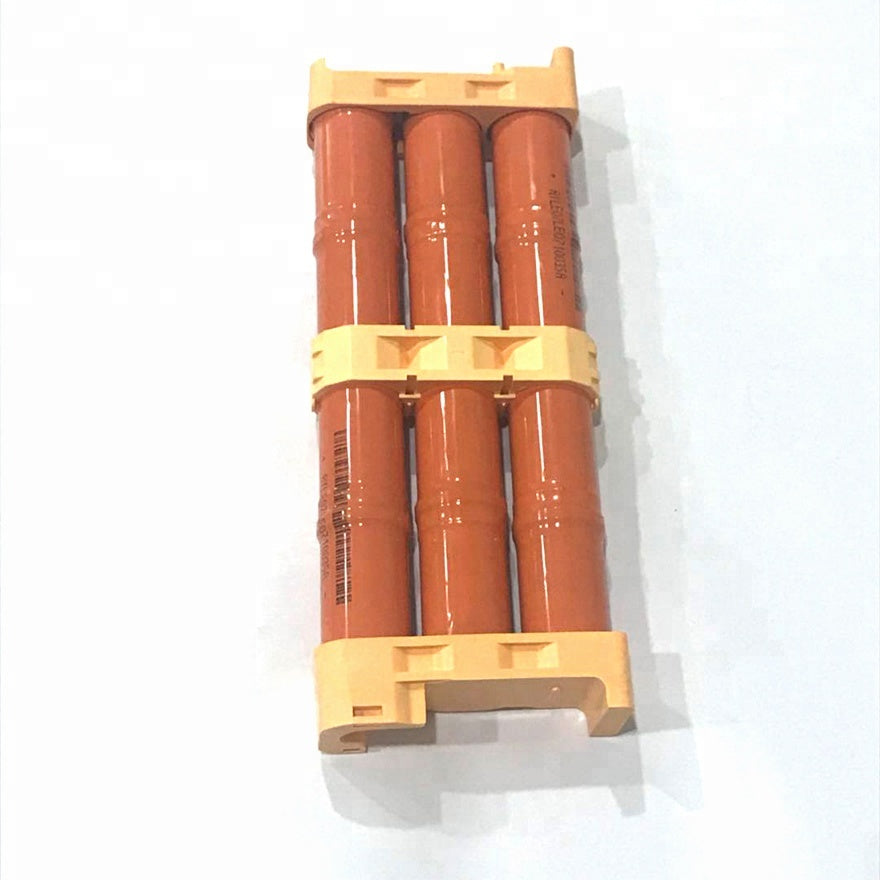

ME-NM-L4*3
|
|
|
2
|
Nominal Voltage
|
14.4V
|
|
3
|
Operating Voltage
|
12.0V~19.2V
|
|
4
|
Nominal capacity
|
6000mAh
|
Charge at 0.2C to 19.2V and discharge at 0.2C to 12.0V
|
5
|
Nominal Energy
|
86.4Wh
|
|
6
|
Weight
|
2000±50g
|
|
7
|
Power Density
|
About 864W/kg
|
|
8
|
Energy Density
|
About 43 Wh/kg
|
|
9
|
Max. Continuous Charge current
|
15C
|
Charge at 20℃~45℃
|
10
|
Max. Continuous Discharge Current
|
20C
|
|
11
|
Storage Temperature
|
-20℃~35℃
|
|
12
|
Operating Temperature
|
-30℃~55℃
|
|
13
|
Internal resistance(DC-IR)
|
≤32mΩ
|
50%SOC
|
14
|
Internal Impedance(AC-IR)
|
≤13.8mΩ
|
1kHz
|
15
|
Self -discharge rate
|
<18%
|
55±2℃ rest 3days, 20±2℃ rest 7days
|
16
|
Energy Efficiency
|
≥85%
|
25℃
|
17
|
Cycle Life
|
>3000 Cycles
|
Charge to 90%, discharge to 10%, 80%DOD
|
18
|
Fit For
|
Prius Gen 2 (2004-2009)
|
14PCS/Vehicle
|
19
|
Lexus CT200h
|
14PCS/Vehicle
|
|
20
|
Prius Gen 3 (2010-2014)
|
14PCS/Vehicle
|
|
21
|
Lexus ES300h
|
17PCS/Vehicle
|
|
22
|
Camry xv40(2007-2011)
|
17PCS/Vehicle
|
|
23
|
Camry xv50(2012-2016)
|
17PCS/Vehicle
|
