MELASTA

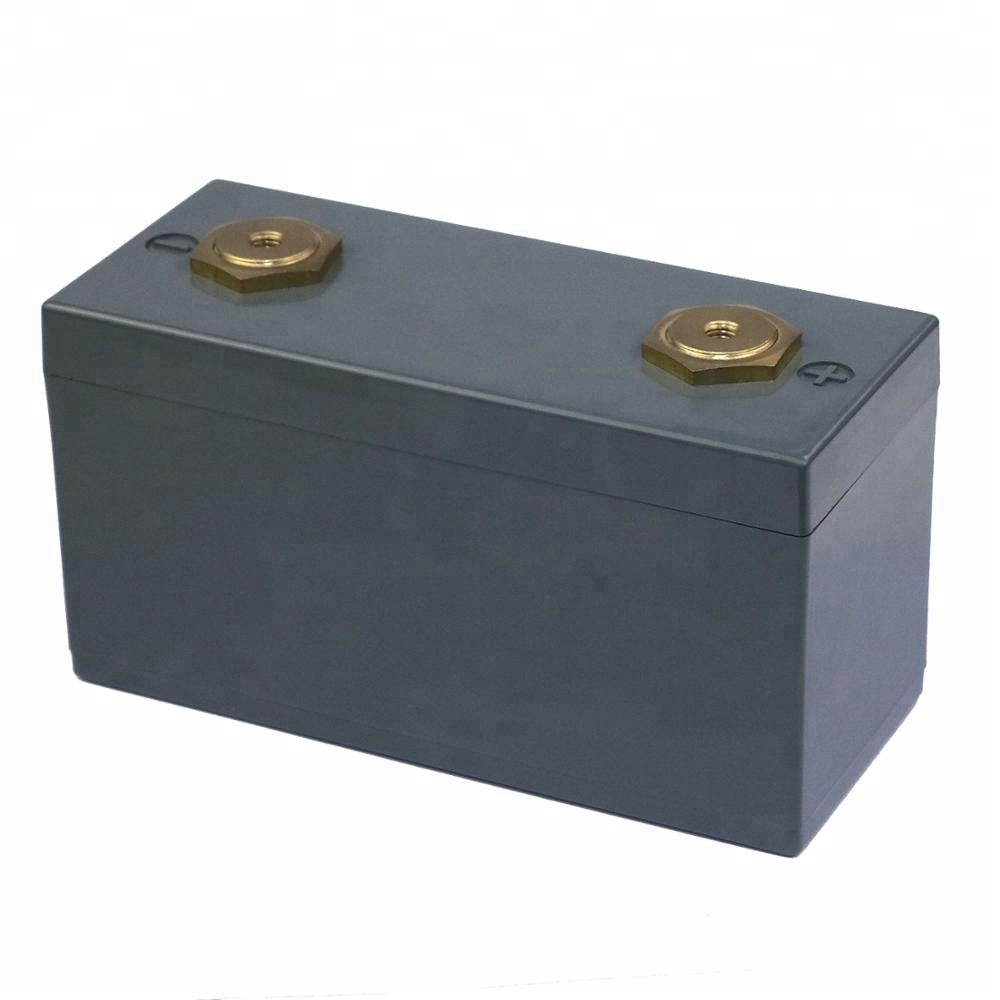

LiFePo4 3.2V 40ah battery with Storage Energy Battery

  • Sale
  • $63.99
  • Regular price $156.30
Shipping calculated at checkout.


Products description:

Nominal voltage : 3.2V

Nominal Capacity :40Ah(0.2C discharge

Max charge current : 8A(1C)

Max pulse charge current :200A

Max discharge current : 120A

Max pulse discharge current :200A(8C≤10S)

Discharge cut-off voltage : 2.0±0.15V

Charge Voltage :3.65V

Inner resistance :≤6mΩ

Operation temperature range

Charge :0℃~45℃

Discharge :-20℃~60C

Storage temperature range

1 month: -20~60°C

3 months: -20~45°C

6 months: -20~25°C

Cycle life

After 2000cycle,capacity more than 80% nominal capacity

Shell material :ABS

Weight : Approx 1.5Kg

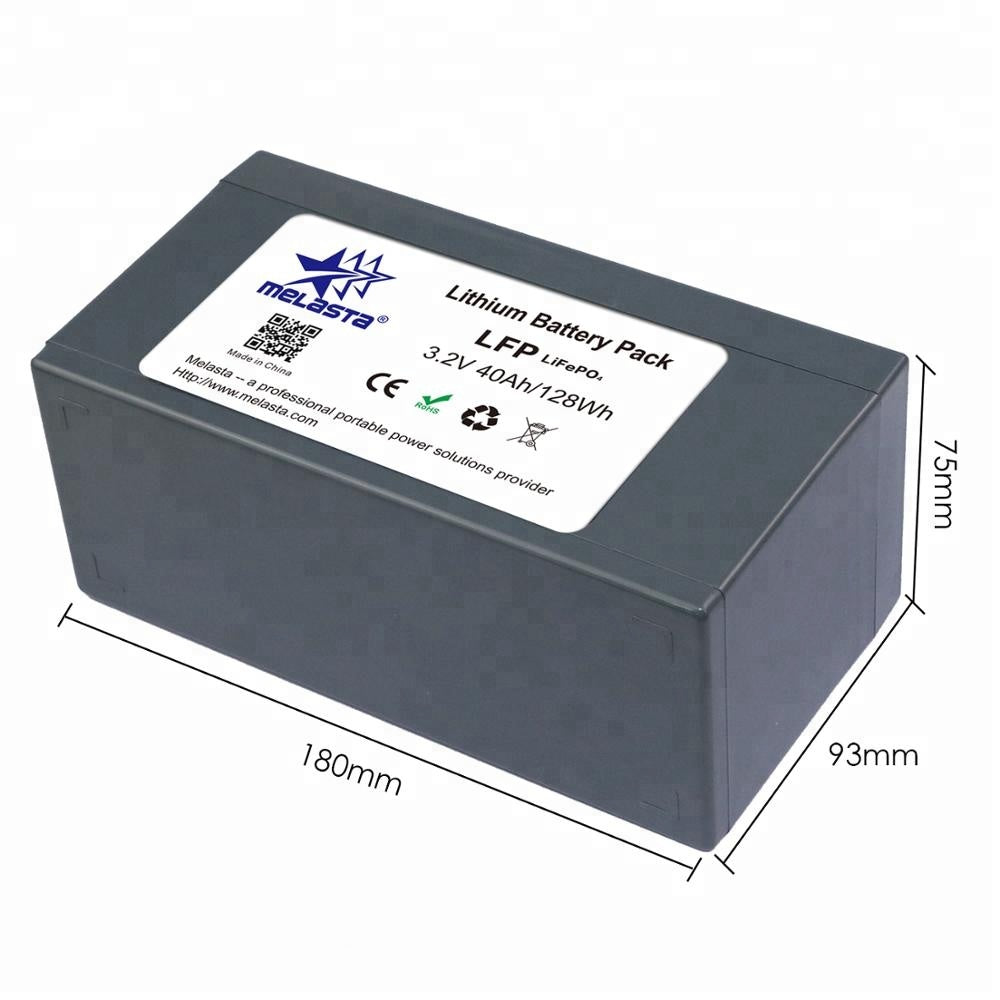

Size(L*W*H):180*93*75mm

Remark:

1.Charge mode:CC/CV, Use a constant current, constant voltage (CC/CV)

2.When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.

3.Recommended long-term storage temperature is 15~25℃

Advantage:

High energy density

Fast charging.

High working voltage for single battery cells.

Pollution-free

Longer cycle life, more than 2000 cycles

No memory effect

Capacity, Power, Voltage and Cell can be customized as your requirement for Min. order 1PC.

With short-circuit production function, safe and reliable

Excellent storage performance and low self-discharge.

Standard size, with same dimension of lead acid battery and for wide usage.

applications:

Solar power systems

Autorickshaw

Electric Golf car

Electric vehicle

Electric scooter

Electric motorcycle

Electric Bicycle

Electric unicycle scooter

Electric toys

Home storage
