MELASTA

8.4V-12V RC NIMH NICD Charger for NIMH Battery Pack

  • Sale
  • $22.21
  • Regular price $23.29
Shipping calculated at checkout.


Item specifics:
  • Brand Name:melasta
  • Battery Number:1s
  • Use:Standard Battery
  • Package:Yes
  • Intelligent Charge:No
  • Model Number:3PN3020
  • Display screen:Yes
  • Quick charge:No
  • Type:Electric
  • Input:100-240v AC 50-60HZ
  • Output 1:Max DC16V 1.8A
  • Output 2:Max DC16V 0.9A
  • Certification:CE UL Certificated,stable quality
  • Condition:Fit for nominal voltage 8.4v~12v
  • Feature:NiMh/NiCd pack only
  • Color:Deep black

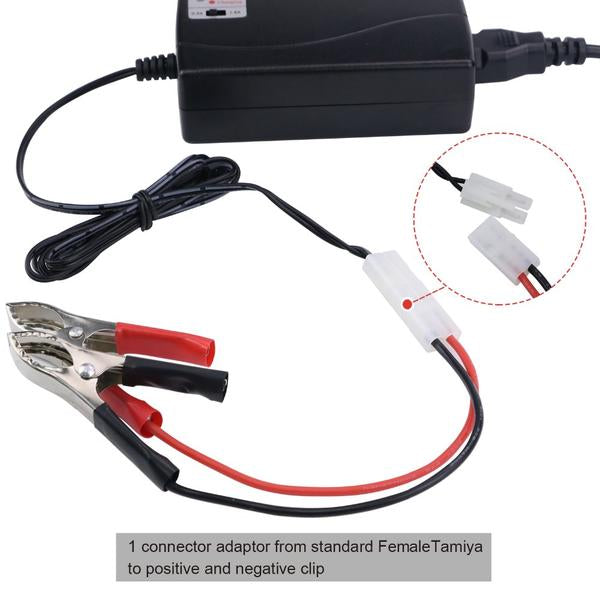

  • ​Connector: Male Tamiya Connector / Mini Male Tamiya Connector / Positive and Nagitive Clip

Feature:

1.Worldwide inpute voltage: AC100-240V

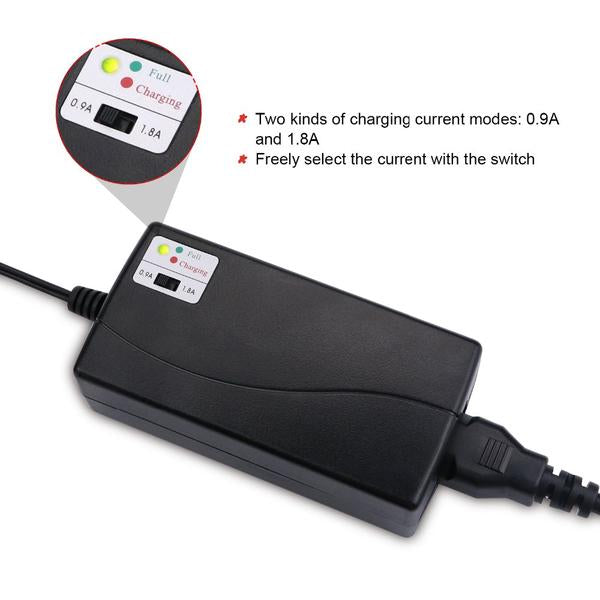

2.two kinds of charging current modes: 0.9A and 1.8A,
Freely select the current with the switch
3.Smart indicator display the charging status,charging or fully charged

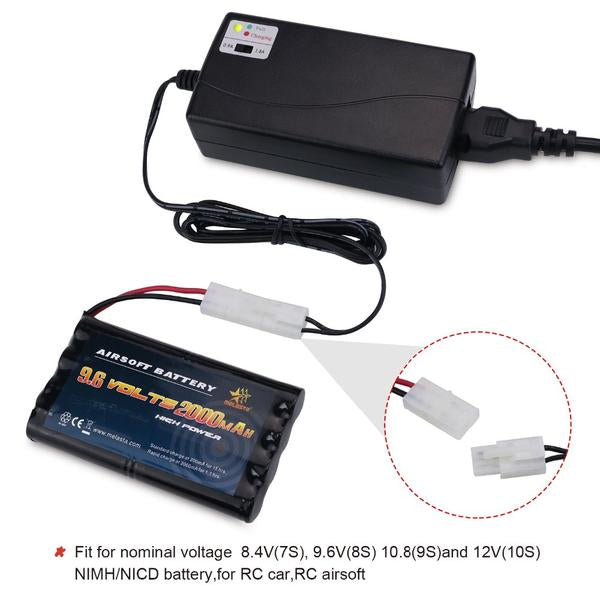

4.wide usage:fit for nominal voltage 8.4V(7S), 9.6V(8S) 10.8(9S)and 12V(10S) NI-MH/NI-CD battery,for RC car,RC airsoft
5.CE UL Certificated,stable quality
6.Multi-function protection,overvoltage protection,short circuit protection,Overcurrent protection

Operating Instructions:


1. Connect battery pack to output connector and plug AC power source
2. Make sure battery polarity is connected correctly (Red wire is positive)
3. Charger will detect battery voltage automatically, Red LED will be on during charging
4. When battery is fully charged, current will reduce to trickle charging at 50mA, Green LED will be on
5. Battery will be charged at 0.9A or 1.8A constant current (changed by switch)
6. Approximate Charging time is about 1.5hrs for 3000mAh battery,1hr for 1800mAh battery
7. The charger is designed for faster charging NiCd and NiMH battery packs from 6 to 12V for RC car/Air and Air soft gun
8. Don't charge battery packs with voltage less than 6V or greater than 12V and capacity smaller than 1000mAh or larger than 5000mAh
9. Battery pack must be made by high drain current cell

Package including:

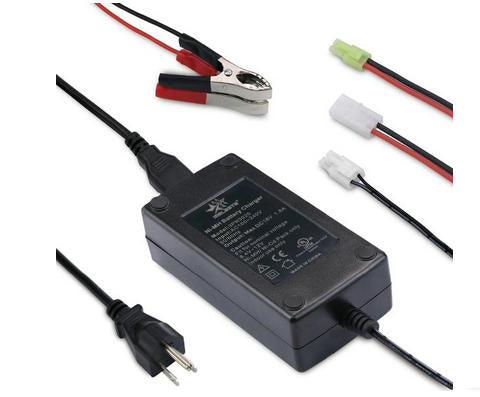

1*charger

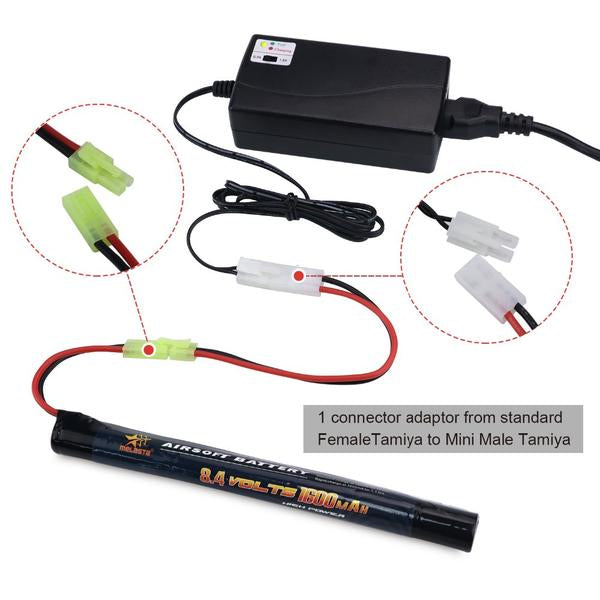

1*connector adaptor from stantard female Timiya to mini male Timiya,
1*male/female Tamiya Connect,male/female mini Tamiya Connect
